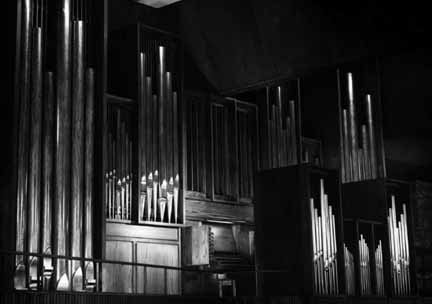

The Phelps Organ at the American Reformed Church, Orange City, Iowa
Move your mouse over the film strip to see the enlarged picture!
 |
|
|
|
 |
 |
 |
 |
 |
|
|
|
Specification
Stop List
| Hauptwerk (II) 56 notes 55mm wind pressure | ||
| 1 | 16' | Quintaden |
| 2 | 8' | Prinzipal |
| 3 | 8' | Rohrflöte |
| 4 | 4' | Oktav |
| 5 | 4' | Waldflöte |
| 6 | 2' | Oktav |
| 7 | 1 1/3' | Mixtur IV |
| 8 | 8' | Trompete |
| Rückpositiv (II) 56 notes 45mm wind pressure | ||
| 9 | 8' | Gedackt |
| 10 | 4' | Prinzipal |
| 11 | 4' | Koppelflöte |
| 12 | 2 2/3' | Nasat |
| 13 | 2' | Oktav |
| 14 | 2' | Waldflöte |
| 15 | 1 3/5' | Terz |
| 16 | 2/3' | Scharf IV |
| 17 | 8' | Krummhorn |
| Tremulant | ||
| Brustwerk (III) 56 notes, expressive 50mm wind pressure | ||
| 18 | 8' | Holzgedackt |
| 19 | 8' | Salizional |
| 20 | 8' | Celeste (TC) |
| 21 | 4' | Spitzflöte |
| 22 | 2' | Prinzipal |
| 23 | 1 1/3' | Quintflöte |
| 24 | 2 2/3' | Sesquialtera II (Low C) |
| 25 | 1/4' | Zimbel III |
| 26 | 8' | Regal |
| Tremulant | ||
| Pedal 32 notes 60mm wind pressure | ||
| 27 | 16' | Prinzipal |
| 28 | 16' | Subbass |
| 29 | 8' | Oktavbass |
| 30 | 8' | Bordun |
| 31 | 4' | Choralbass |
| 32 | 2' | Nachthorn |
| 33 | 2' | Mixtur IV |
| 34 | 16' | Posaune |
| 35 | 16' | Fagott |
| 36 | 8' | Trompete |
| 37 | 4' | Schalmei |
Action
- Key action: mechanical
- Stop action: electric
Couplers
- Hauptwerk to Pedal
- Rückpositiv to Pedal
- Brustwerk to Pedal
- Rückpositiv to Hauptwerk
- Brustwerk to Hauptwerk
- Brustwerk to Rückpositiv
Adjustable Combination Action
- Eight on each division plus generals
- Tutti, Cancel, Adjuster
